Spiral Oil Press Machine

  • Spiral Oil Press Machine

Short Description:

Automatic Spiral oil press machine is composed of such components as electric appliance control, hot pressing, adjustment, driving and vacuum oil filter. Sell Automatic Spiral oil press machine to customers home and abroad.


Product Detail

Production Case

Automatic Spiral Oil Press Machine Description:
Automatic Spiral oil press machine is composed of such components as electric appliance control, hot pressing, adjustment, driving and vacuum oil filter. The squeezing worm is made of alloy steel treated by carburization to improve its surface hardness and wear resistance; the squeezing bars are grinded by surface grinder to ensure the accuracy of oil thread and improve oil extraction rate; the standard components for power distribution, vacuum and heating are famous brands to optimize machine configuration.
The disadvantage of traditional oil pressing methods: include the original workshop, simple and crude equipment, hulking operation, large floor area, high energy consumption, low oil extraction rate and bad hygienic conditions.Wintone Automatic Spiral oil press machine Advantage: advanced design, reliable performance, simple operation and convenient maintenance.

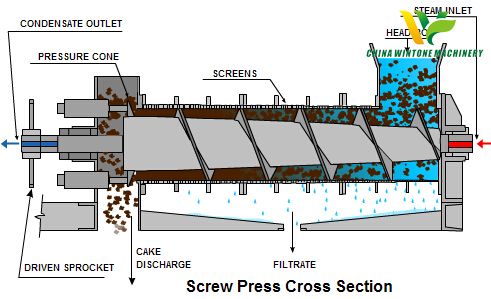

How does screw oil press work?
Screw oil press machine that presses oil seeds through a caged barrel-like cavity. Raw materials enter one side of the press and waste products exit the other side. The machine uses friction and continuous pressure from the screw drives to move and compress the seed material. The oil seeps through small openings that do not allow seed fiber solids to pass through. Afterward, the pressed seeds are formed into a hardened cake, which is removed from the machine.




Automatic Screw Oil Press Machine Feature:
1. Saving labor: it can save 60% labor for equal output and 40% labor cost per day for one or two people are able to make production.
2. Widely-used: The oil mill machine can be used to completely press more than 20 kinds of crops such as peanuts, sesame, vegetable seeds, soybean, oil sunflower and flax by three stages pressing, low residual oil ratio.
3. Pure oil quality: the vacuum oil filtering is used to remove residue so as to ensure the pure oil quality and meet the standard of health quarantine.
4. Small land-using: am area of 10~20 m2 workshop can meet the demands of oil processing.

Automatic Spiral Oil Press Machine Main Technical Parameters:

Model

Parameter
D-1685
D-1688
ZL-120
6YL-130
6YL-165
Diameter of Squeezing worms(mm)
80
100
120
130
160
Speed of Squeezing worms(r/min)
60
40
36
36
35
Diameter of Internal Circle of pressing Chest(mm)
82
102
122
132
162
Configuration Power
Main Engine(kw)
6-5.5
6-7.5
6-11
4-18.5
4-22/30
Heater(kw)
3
3.5
4
6
6
Handling capacity(kg/h)
80-160
150-260
160-400
400-500
500-650
Weight of Complete Machine(kg)
780
1100
1500
1900
2000
SizeL x W x H(mm)
1700×1300×1600
2000×1400×1750
2000×1550×1800
2250×1600×1850
2300×1700×1900

We can supply design, manufacture, installation, calibration and after service of  Screw Oil Press Machine .
