Automatic Hydraulic Oil Press

  • Automatic Hydraulic Oil Press

Short Description:

Automatic Hydraulic Oil Press Description: Automatic Hydraulic Oil Press Machine adopts automatic control system, automatic preheating temperature control and and automatic pressure control of hydraulic system.


Product Detail

Production Case

Automatic Hydraulic Oil Press Description:

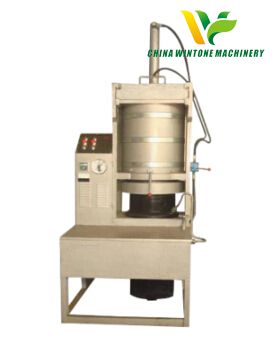

Automatic Hydraulic Oil Press Machine adopts automatic control system, automatic preheating temperature control and automatic pressure control of hydraulic system. Our domain expertise has enabled us to come up with an impeccable range of Automatic Oil Hydraulic Press. These hydraulic oil mill machines are manufactured using finest quality material, which are procured from the most trusted vendors of the market. The offered range of products can be availed by the patrons as per their need and specifications.
Hydraulic oil mill is multi-function. It can be used for hot and cold pressing in varieties of high-grade oil crops, such as sesame, walnut kernel, peanut, pine seed (better to get rid of the shell), almond, spricot kernel, perilla, linseed and other oil crops.
Hydraulic Oil Mill can press at least 2 to 7 kilograms per batch, the time is about 4 to 6 minutes, so it is very suitable for the citizens who live in the big and medium cities because they want get the high quality of oil of spending money. The Hydraulic Oil Press Machine also can be used in the countryside, because the speed of oil pressing is fast so people can bring their oil raw material to press oil. In this way, they can be assured of the purity of their oil. Witone Machinery as a hydraulic oil press manufacture supply customers best service and high quality and low price oil press machines.
Hydraulic Oil Press
Automatic Hydraulic Oil Press Feature:
1. Easy to operate;
2. Fully automatic;
3. High oil press rate;
4. Rare to replace wearing parts;
5. Convenient maintaining;
6. Stable performance;
7. Energy saving and labor saving;

Automatic Hydraulic Oil Press Main Technical Parameters:

Model
QYZ-500
QYZ-410
6YZ-260
Working pressure(MPa)
40
45
55
Pushing Force of Working(t)
300
120
190
Inner Diameter of Pressing Barrel(mm)
500
410
230
Working Stoke of Piston(mm)
700
500
300
Capacity of Pressing Barrel(kg)
200
80
8
Average Performance
200
80
8
Main Motor(kw)
4
1.5
1.5
Motor of Heating(kw)
4
4
2
Oil Cylinder of pre-pressing(MPa)
10
10
/
Weight(kg)
2800
1500
850

We can supply design, manufacture, installation, calibration and after service of   Hydraulic Oil Press .
