Oil Seed Crusher

  • Oil Seed Crusher

Short Description:

Oilseed Roll Crusher is pre-treatment processes supporting equipment for large particles of soybean, peanut and other materials-oil process. Crushing mill is one of our main products, through 20 years research, development and assimilation of advanced technology of similar products in the industry.


Product Detail

Production Case

Oilseed Crusher Description:
Oilseed Roll Crusher is pre-treatment processes supporting equipment for large particles of soybean, peanut and other materials-oil process. Crushing mill is one of our main products, through 20 years research, development and assimilation of advanced technology of similar products in the industry; we have achieved perfect combination with crushing effect, output and service life.
The purpose of oilseed crushing:
1. To make the oil plant having certain granularity for easy rolled compact;
2. Increase the superficial area of the oil plant, which is beneficial to the transmitting of temperature and water during the oil plant softening process to ensure the softening effect.
3. To crush the oil cake into small grains in order to leach oil.

Oilseed Crusher Technical Data:



Model
Capacity(t/d)
Power(kw)
Granularity (piece)
Remark
YPSG25 × 80
130-150
7.5 × 2 +0.37
4-8
Soybean
100-120
22 +11 +0.37
Cottonseed(shell)
YPSG25 × 100
150-200
11 × 2 +0.37
4-8
Soybean
120-150
30+11 +0.37
Cottonseed(shell)
YPSG40 × 100
300-350
15 ×2 +0.37
4-8
Soybean
200-250
37 + 18.5 +0.37
Cottonseed(shell)
YPSG40 × 125
350-400
18.5 × 2+0.55
4-8
Soybean
250-300
45 + 22 +0.37
Cottonseed(shell)
YPSG40 × 150
400-450
22 × 2 +0.55
4-8
Soybean
300-350
55 +30 +0.55
Cottonseed(shell)



The requirements of Oilseed crushing:
1. The grain should be uniform. For example, the soybean grain should be 4-6parts/pc, and peanut is 6-8 parts/pc;
2. The raw material should not have oil outlet appearance and ball appearance;
3. The powder ratio should be low, limit the powder ratio within 10% when it passing through 20 mesh sieve(hole/inch).

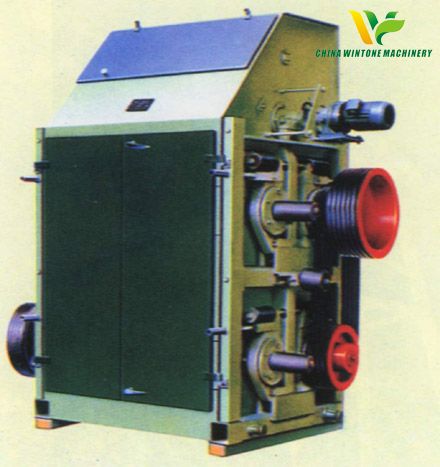

oilseed crusher machine
Oilseed Crusher For Sale Features:
High performance;
Longer functional life;
Less power consumption;
Optimum durability;

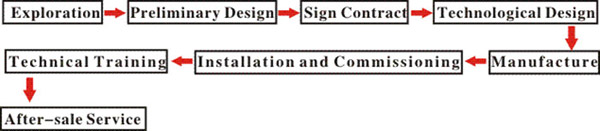

We can supply design, manufacture, installation, calibration and after service of  oilseed crusher for oilseed pretreatment.
