New Type Multifunctional Oil Processing Machinery

Short Description:

The new type multifunctional oil processing machinery sells hot now, and this passage introduce this machine so that more people know well.

Email Chat

Product Detail

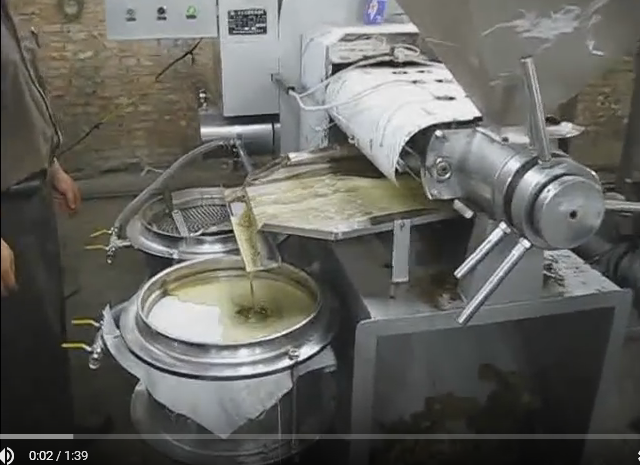

Production Case

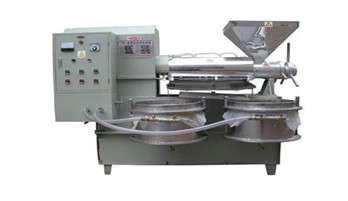

The New Type Multifunctional Oil Processing Machinery is one of the most advanced oil processing machinery in China, it widely used in sesame, rapeseed, peanut, cottonseed, soybean, tea seed, corn germ oil press and other oil crops.

Production Features:

1.High Oil Yield: Using directional pressure, multistage propulsion, a net oil, the oil rate increased by 10-30%;

2.Production Volume: Strengthen the feeding system, increase the speed, the work efficiency is improved by more than 30%;

3.Automatic Control: Automatic temperature control press; built-in vacuum diverter, oil, slag separation;

4.Safe and Convenient: Compact structure, less occupied space; the use of fully enclosed protection, safe and convenient operation;

5.Durable Service: The new type multifunctional oil processing machinery body with high quality wear-resistant steel and anti fatigue casting, stable performance, long-term continuous work; machine table using the latest materials electrostatic spray, strong adhesion, high temperature resistance, high temperature, not only beautiful, but also clean health.

Specification Parameter:

Type		ZY-80	ZY-100	ZY-120
Pressing screw diameter(mm)		80	100	120
Pressing screw speed(r/min)		60	40	36
Equipped with power	main engine(kw)	5.5	7.5	11
	Heater(kw)	3	3.5	4
Amount of treatment(kg/h)		80-160	150-260	260-400
Overall weight(kg)		780	1100	1500
Dimensions(L×W×H)(mm)		1600×1300×1400	1900×1400×1600	2100×1680×1750
