YZYX140CJ Machine Oil Press

  • YZYX140CJ Machine Oil Press

Short Description:

Our series YZYX140 MACHINE OIL PRESS is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. YZYX140CJ machine oil press has characters of small investment, high capacity, strong compatibility and high efficiency. YZYX140CJ machine oil press is widely used in small oil refinery and rural enterprise.


Product Detail

Production Case

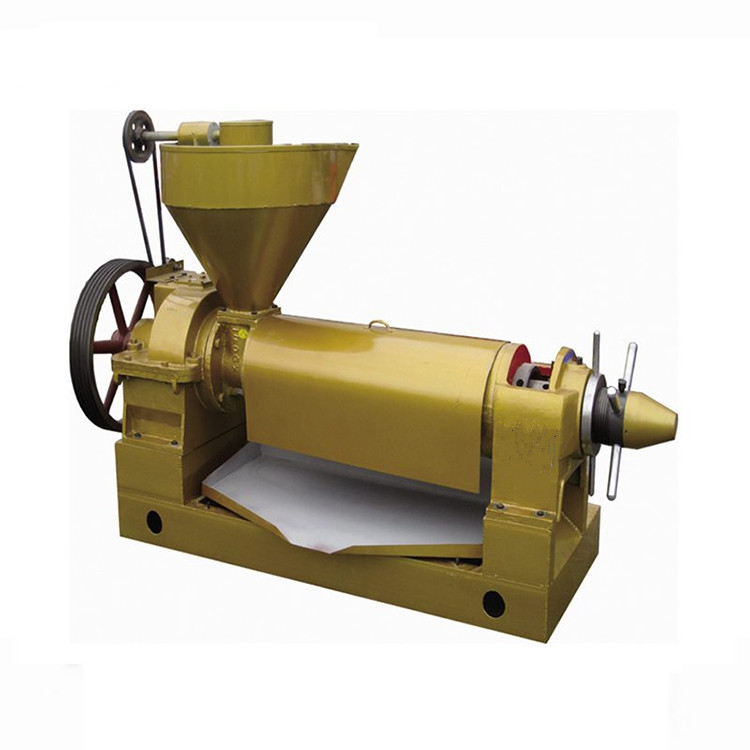

 Machine Oil Press

Our series YZYX140 MACHINE OIL PRESS is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. YZYX140CJ machine oil press has characters of small investment, high capacity, strong compatibility and high efficiency. YZYX140CJ machine oil press is widely used in small oil refinery and rural enterprise.

YZYX140 is basic 2-step-squeezing spiral oil press.

YZYX140-8 is 3-step squeezing spiral oil press with bigger compression ratio in the press chest, suitable for users who have operation experience and stress on low oil content of the dry cakes.

YZYX140CJ is a strong pressing type in which the pressure is big. Thus, the squeezing effect is better when operates properly.

YZYX140GX has bigger deceleration box which operates smoothly and has long service life.

 Above models do not have cake cracking device. The models with that will have S at the end of the model number. 120 series with electric heating instrument has WK at the end of the model number.


YZYX140CJ Machine Oil Press Main Features:

Below features are based on oil plants above the average quality smoothly and continuously squeezed after such pretreatments as screening, husking, flaking and cooking, etc.

Oil Plants

Processing  Capacity (t/24h)

Oil content of

Dry cakes (%)

Oil yield efficiency   (%)

Electric power  consumption (kw.h/t)

Rapeseed

9~11

≤7.6

≥82

≤34

Cotton seeds

9~11

≤6.8

≥77

≤54

Soybean

8~10

≤6.5

≥67

≤51

Peanut

9~11

≤6.5

≥92.3

≤34

Note:

① It is normal that sometimes the actual results may be a little different from those in the index because the oil plant’s type, quality and original content may be different in different areas.

② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.


YZYX140CJ Machine Oil Press Technical Specification:

Item

YZYX140(-8)

YZYX140CJ

YZYX140CJGX

Revolving speed of spiral axis  (r/min)

32-44

Power required(kw)

18.5(Y180M-4)or 22(Y180L-4)

Measurement  (mm)

2010×690×1430

2100×690×1400

2300×820×1370

Weight  (kg)

806

884

1100

Note:

This weight is without electro-motor’s weight.



 YZYX168 Water-Cooling Rapeseed Oil Pressing Machine Video:

 Oil Pressing Machine
