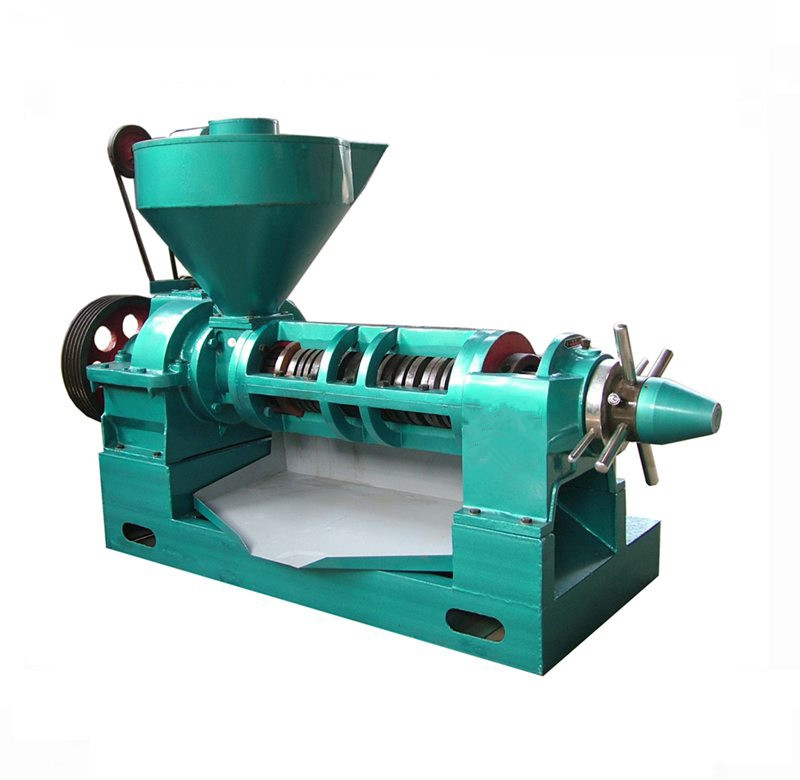

      Commercial Oil Press

      Our series YZYX130 COMMERCIAL OIL PRESS is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. YZYX130-12GX commercial oil press has characteristics of small investment, high capacity, strong compatibility and high efficiency. YZYX130-12GX commercial oil press is widely used in small oil refinery and rural enterprise.



      YZYX130-12 is new 3-steps squeezing spiral oil press with bigger compression ratio in the press chest,lower oil content less than 6.0% in cake.

      YZYX130-12D is special model for soybean oil extraction with oil content in cake less than 5.5%.

      YZYX130GX is oil press with bigger gear box which has slant tooth. It works smoothly, has longer work life and lower noice.

      Above models are without cake cracking device. The models with cake cracking device have S at the end of the model number. The model numbers will have WK when the machine is equipped with electric heating instrument.


      YZYX130-12GX Commercial Oil Press Main Features:

      Below features are based on oil plants with above medium quality smoothly and continuously squeezed after good pretreatments as screening, husking, flaking and cooking, etc.

      Oil Plants

      Processing  Capacity(t/24h)

      Oil content of

      Dry cakes (%)

      Oil yield efficiency   (%)

      Electric power consumption (kw.h/t)

      Rapeseed

      ≥8.0

      ≤7.6

      ≥82

      ≤34

      Cotton seeds

      ≥8.0

      ≤6.8

      ≥77

      ≤54

      Soybean

      ≥7.0

      ≤6.5

      ≥67

      ≤51

      Peanut

      ≥8.0

      ≤6.5

      ≥92.3

      ≤34

      Note:

      ① It is normal that sometimes the actual results may be a little different from those in the index because the oil plant’s type, quality and original content may be different in different areas.

      ② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.



      YZYX130-12GX Commercial Oil Press Technical Specification:

      Item

      YZYX130-8(12)

      YZYX130GX-8(12)

      Revolving speed

      of spiral axis (r/min)

      28-40

      Transmission type

      Triangle belt Transmission

      Power required(kw)

      15(Y160L-4)or 18.5(Y18M-4)

      Measurement (mm)

      2020x742x1420

      2100x820x1370

      Weight (kg)

      886

      998

      Note:

      This weight is without electro-motor’s weight.
