    • Groundnut Shelling Machine
      Writer: From:
      Size: Big Medium Small Time: 2015-01-30 15:28:11

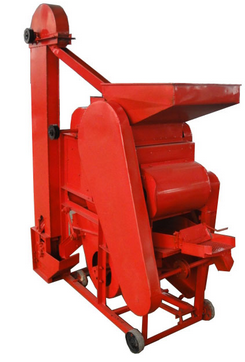

      peanut sheller.pngGroundnut is one of the important crops in the world. Groundnut kernel is often used to make cooking oil. Groundnut Shelling Machine was designed and built to help improve the standard of living of people in third world countries such as Ghana and Haiti.


      Groundnut Shelling Machine is produced according to the national standards strictly. It consists of rasp bar, stake, intaglio, fan, gravity separator and second bucket, etc. The whole groundnut shelling machine frame is made of high-quality steel and the shelling chamber is made of stainless steel. This groundnut shelling machine has compact structure, easy operation and reliable performance. Peanut huller is used to shell peanut; can separate shells and kernels with high-efficiency and almost without damage to the kernel; and the shelling rate can be ≥95%, the breaking rate is≤5%. While peanut kernels are used for food or the raw material for the oil mill, the shell could be used to make wood pellets or charcoal briquettes for fuel.
      peanut shelling.jpg
      How does the groundnut shelling machine work?
      After starting, the shells of peanuts are shelled by the rolling force between the rotating rasp bar and the fixed intaglio, and then shells and kernels fall through the grid mesh down to the air duct, and the fan blows shells out. The kernels and the unshelled small peanuts fall into the gravity separator. The separated kernels are sent upward to the outlet and the separated unshelled small peanuts are sent downwards to the elevator, and the elevator sends the unshelled peanut to the fine grid mesh to be shelled again until the whole batch of peanuts are all shelled.

      Groundnut Shelling Machine Techinal Data:

      Model AMS-400 AMS-800 AMS-1500 AMS-1600 AMS-3000 AMS-3300
      Capacity(kg/h) 400 800 1500 1600 3000 3300
      Power(kw) 2.2 4 5.5 7.5 11 11-15
      Shelling rate ≥95% ≥95% ≥95% ≥95% ≥95% ≥95%
      Breaking rate ≤5% ≤5%
      ≤5%

      ≤5%

      ≤5%

      ≤5%

      Losing rate
      ≤0.5%

      ≤0.5%

      ≤0.5%

      ≤0.5%

      ≤0.5%

      ≤0.5%

      Cleaning rate
      ≥95.5%

      ≥95.5%

      ≥95.5%

      ≥95.5%

      ≥95.5%

      ≥95.5%

      Weight(kg) 137 385 775 760 960 1315





      Groundnut shelling machine designed by our factory can shell peanut completely; separate shells and kernels purely and almost without damage to the kernel; and the shelling rate can be ≥95%, the breaking rate is≤5%.
      Export peanut shelling machine or groundnut huller on cheap price. Our machine has high efficiency and low energy consumption.
